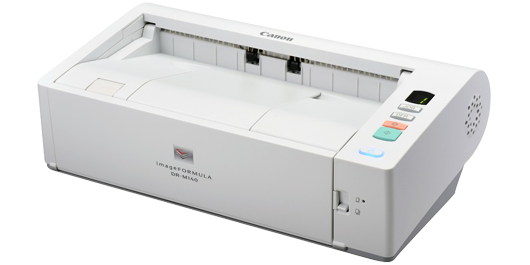

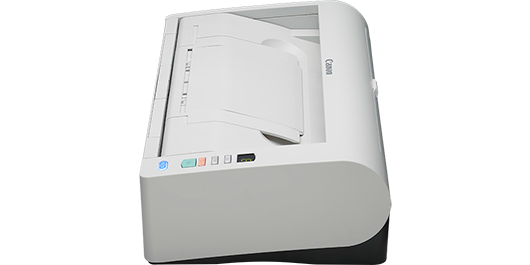

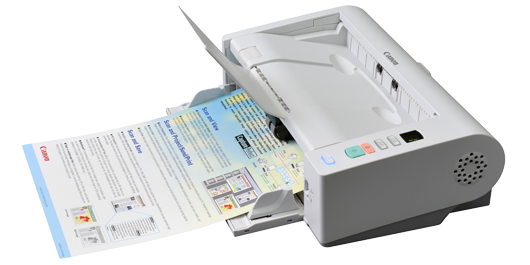

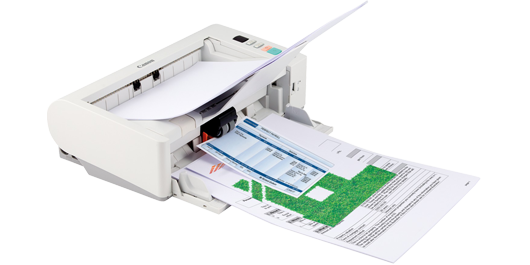

Canon imageFORMULA DR-M140 Specifications

GENERAL PRODUCT INFORMATION

Type

Desktop Type Sheet Fed Scanner

Scanning sensor unit

CMOS CIS 1 Line Sensor

Optical resolution

600dpi

Light source

RGB LED

Scanning side

Front/ Back/ Duplex

Interface

USB 2.0 (USB 3.0 Compatible)

Dimensions (WxDxH)

Tray Closed: 313 (W) x 181 (D) x 93 (H)mm


Tray Opened: 313 (W) x 288 (D) x 93 (H)mm

-

Weight

Approx. 2.6kg

Power requirements

AC100 - 240V (50/60Hz)

Power consumption

Scanning: 25W or less, Sleep mode: 1.9W or less, Power turned off: 0.5W or less

Operating environment

10 - 32.5 °C (50 - 90.5 °F), Humidity: 20 - 80% RH

Environmental compliance

RoHS

SCANNING SPEED (200DPI)

Black and White

40ppm/80ipm

Colour

40ppm/80ipm

Output resolution

100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi

Colour mode

Binary: Black & White, Error Diffusion, Advanced Text Enhancement I, Advanced Text Enhancement II, Auto Colour Detection, 8-bit Greyscale:(256-Level), 24-bit colour

Suggested Daily Duty Cycle

Approx: 6,000 scans/day

Width

50.8 - 216mm

Length

54 - 356mm

Thickness

U-Turn: 0.04 - 0.15mm (27 - 128g/m²) Straight Through: 0.04 - 0.3mm (27 - 255g/m²)

Long document mode

3000mm max. (Supported by Straight Feeding)

Card scanning

54 x 86 x 1.4mm (Embossed card scanning is supported)

Paper separation

Retard Roller Method (Reversing Seperator Roller)

Feeder capacity

80 Sheets (80g/m²)

Others

Automatic Page Size Detection, Deskew, 3- Dimentional Colour Correction, Colour Dropout (RGB), Auto Colour Detection, Text Enhancement, MultiStream, Preset Gamma Curve, Prescan, Patch Code, Image Rotation, Skip Blank Page, Folio, Scan Area Setting, Text Orientation, Edge Enhancement, Moire Reduction, Prevent Bleed Through/Remove Background, Character Emphasis, Background Smoothing, Shadow Removal, Auto Resolution Setting, Erase Dot, Rapid Recovery Scan, Double Feed Detection (Ultrasonic Sensor / By Length)

Windows

ISIS/TWAIN Drivers (Windows 2000/XP Pro/XP Home/Vista/7/8/10)
CaptureOnTouch Pro
CapturePerfect
Kofax VRS
eCopy PDF Pro Office

CONSUMABLES

Exchange Roller Kit

ACCESSORIES

A4 Flatbed 102
A3 Flatbed 201
Barcode Module
2D Code Module
NA10 or WA10 Network Adapter

Disclaimer

All data is based on Canon standard testing methods except where indicated.

Subject to change without notice.
