Canon VB-M741LE


Keep every outdoor angle covered


  • A fully featured IR bullet camera for high quality images day or night
  • See in zero light with inbuilt IR illumination plus ultra wide coverage
  • Outdoor-ready with additional environmental protection
  • Extreme low temperature start up and operation
  • Easy installation with remote set up, and simple cable connections

Detailed Features

Take a look at a more detailed look into the Canon VB-M741LE

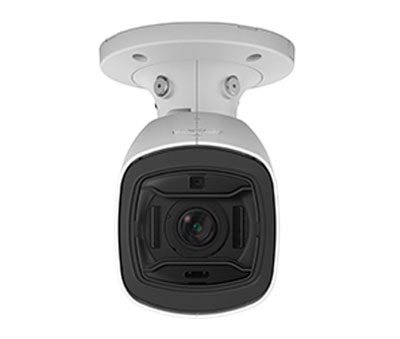

A fully featured IR bullet camera delivering high quality images day or night

Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. The VB-M741LE also features built-in Infrared LED illumination to provide up to 30m coverage in total darkness. Optimised H.264 bit rate and ADSR technology improve bandwidth control and allow operators to freely define areas of the scene where the best quality imaging is needed.

See in zero light with inbuilt IR illumination plus ultra wide coverage

The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 113.4° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001 lux (mono). Haze Compensation automatically adjusts image contrast to make environments with fog, haze or smog easier to see.

Easy installation with remote set up and simple cable connections

The VB-M741LE features a simple pigtail cable connection and PTRZ support to help reduce installation times and cost. Connections include Audio and Alarm inputs and operators can easily identify alarming situations thanks to a wide range of inbuilt intelligent detection functions, which can automatically activate recording. These include Intruder Detection, which identifies moving objects entering a specified area, and Scream Detection, which recognises abnormal human sounds like screams or yells.

Outdoor-ready with additional environmental protection

The VB-M741LE is fully outdoor ready with extensive weatherproofing and environmental protection. Its robust construction and innovative design means that it is also compliant with NEMA250 Type4X and IEC 60950-1/22 standards, making it ideal for use in a wide range of harsh conditions including coastal areas subject to salt damage or industrial processing sites with corrosive emissions.

Extreme low temperature start up and operation

The VB-M741LE is ideal for use in extremely cold environments thanks to its durable design and an inbuilt heater that enables reliable start up at -30° and operation in temperatures as low as -50°C. It's air cooling abilities also enable it to operate equally efficiently in temperatures up to + 55°C, such as in hot tropical and arid regions.

Product Specification

Find out more about the Canon VB-M741LE, its features and what it can do.


Efficient Network processing

Digic DV III

Manages image quality & control

1.3 Mega Pixel

High quality images

All weather Model

Extended weatherproofing

Auto DayNight

Removable IR Filter

Intelligent Function

Video Content Analysis

Intrusion Detection

Zone protection

Scream Detection

Sound detection

PoE plus

Power over Ethernet


Added bandwidth control

Linked Event

Conditional alarms

SD Card

Edge recording


Multiple camera management

Infrared Illumination

inbuilt light source

  • VB-M741LE Main Unit
  • Setup CD-ROM
  • Safety Wire & fixing screw
  • Ceiling Plate & fixing screws
  • Wrench
  • Template
  • Power Interface Cable
  • I/O Interface Cable
  • Installation Guide
  • Warranty Card
  • Leaflet of Warranty Card
  • Packaging
